DRIVERS

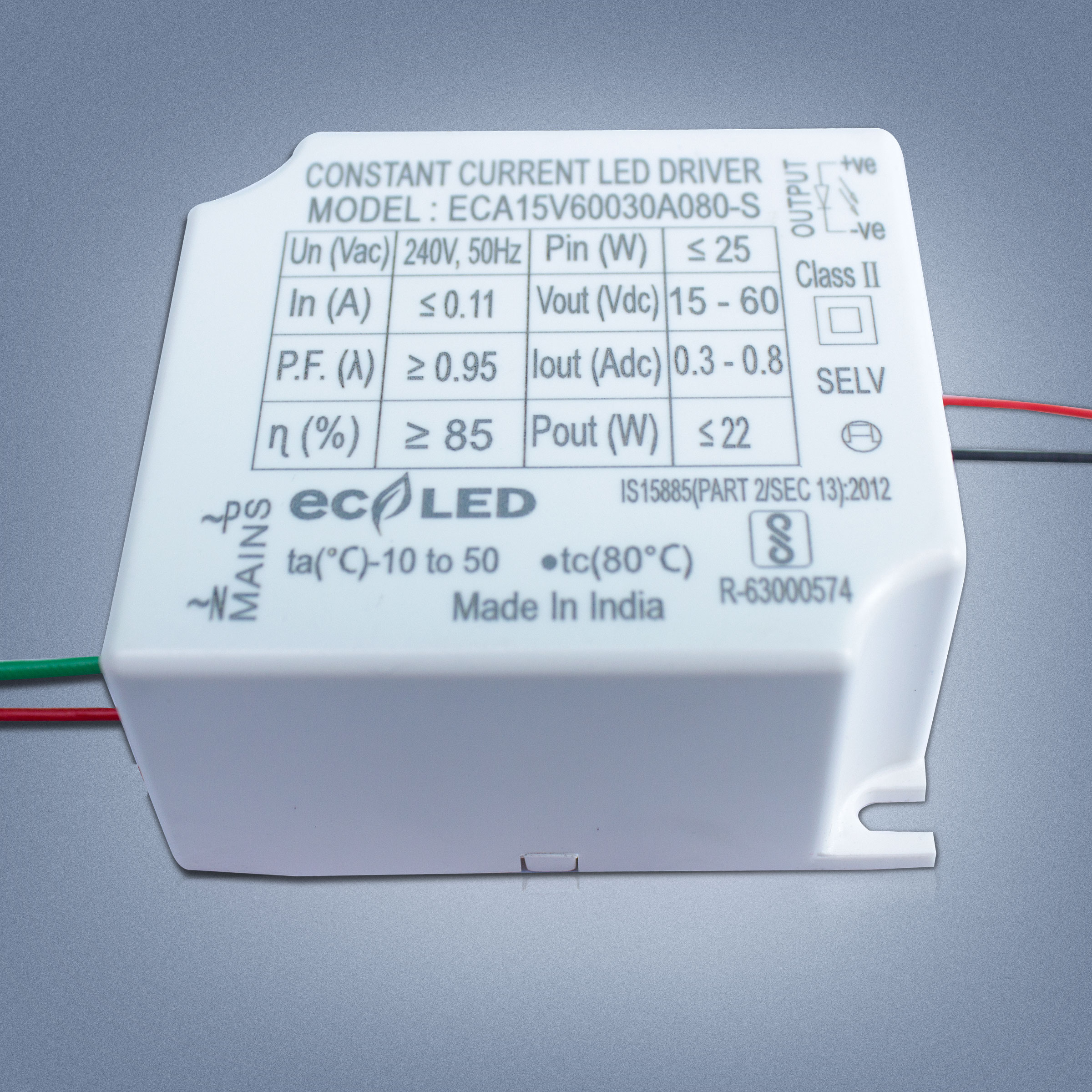

15W to 25W
Model No.: ECA15V60030A080-S
Output Rating: 18 – 24V, 750mA
FEATURES
Constant Current, Isolated
Class II Driver
Plastic Casing
Operating Voltage Range (140-285 Vac)
6KV Surge Differential Mode
Protections - OVP, SCP, OTP
IP 20 / IP 65
Dimension : L x W x H: 63 x 58 x 30 mm
Indoor and Outdoor Applications
DATA SHEET

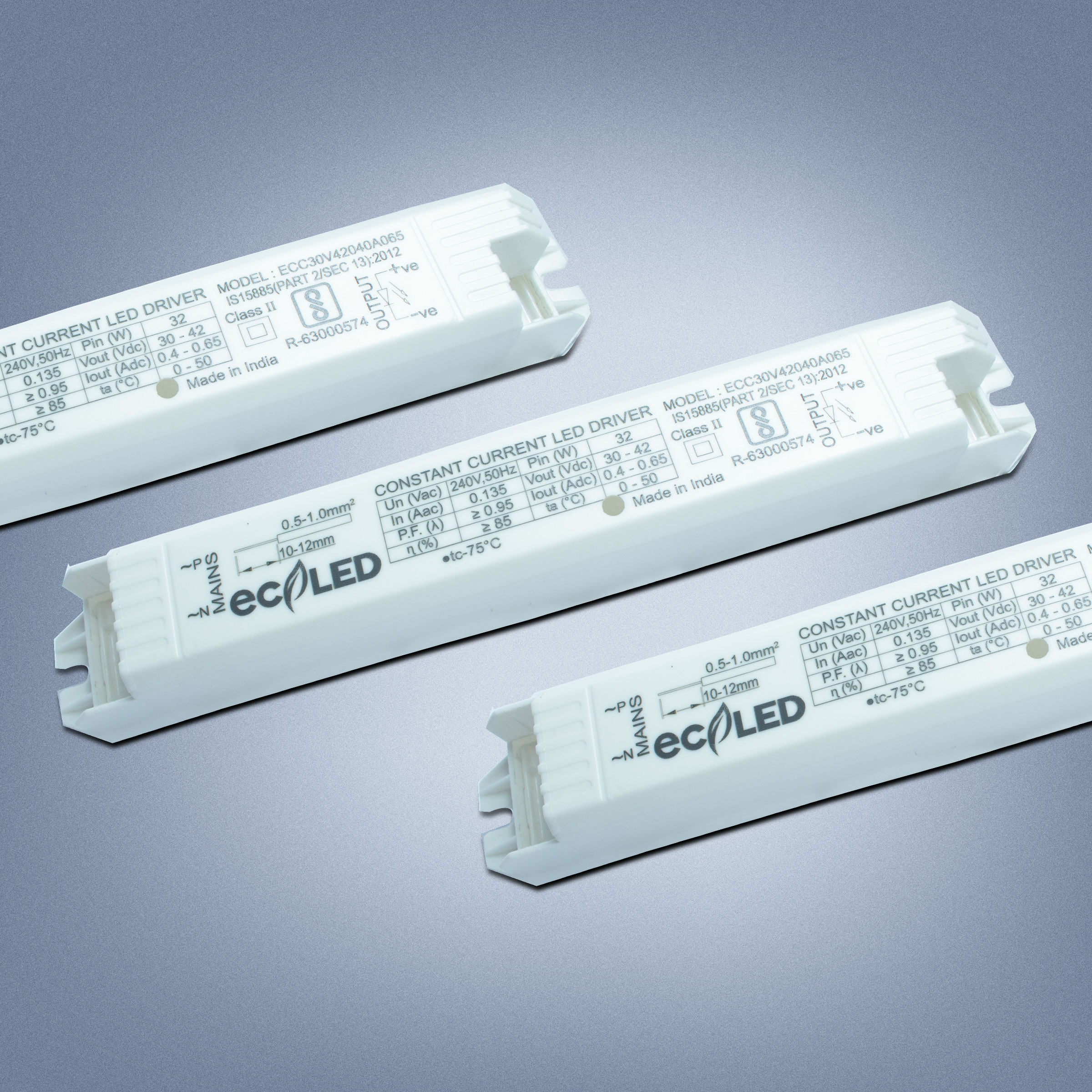

20W to 30W
Model No.: ECC30V42040A065
Output Rating: 36V, 500mA
FEATURES
Constant Current, Isolated
Class II Driver
Plastic Casing
4KV Surge Differential Mode
Protections - OVP, SCP, OTP
IP 20
Dimension : L x W x H: 210mm x 31mm x 25mm
Indoor Application only
DATA SHEET
26W to 35W
Model No.: ECA36V60040A090-S
Output Rating: 36 – 42V, 750mA
FEATURES
Constant Current, Isolated
Class II Driver
Plastic Casing
Operating Voltage Range (140-285 Vac)
6KV Surge Differential Mode
Protections - OVP, SCP, OTP
IP 20 / IP 65
Dimension : L x W x H: 86mm x 47mm x 33mm
Indoor and Outdoor Applications
DATA SHEET
30W to 45W
Model No.: ECC30V39080A110
Output Rating: 36V, 1000mA
FEATURES
Constant Current, Isolated
Class II Driver
Plastic Casing
4KV Surge Differential Mode
Protections - OVP, SCP, OTP
IP 20
Dimension : L x W x H: 210mm x 31mm x 25mm
Indoor Application only
DATA SHEET

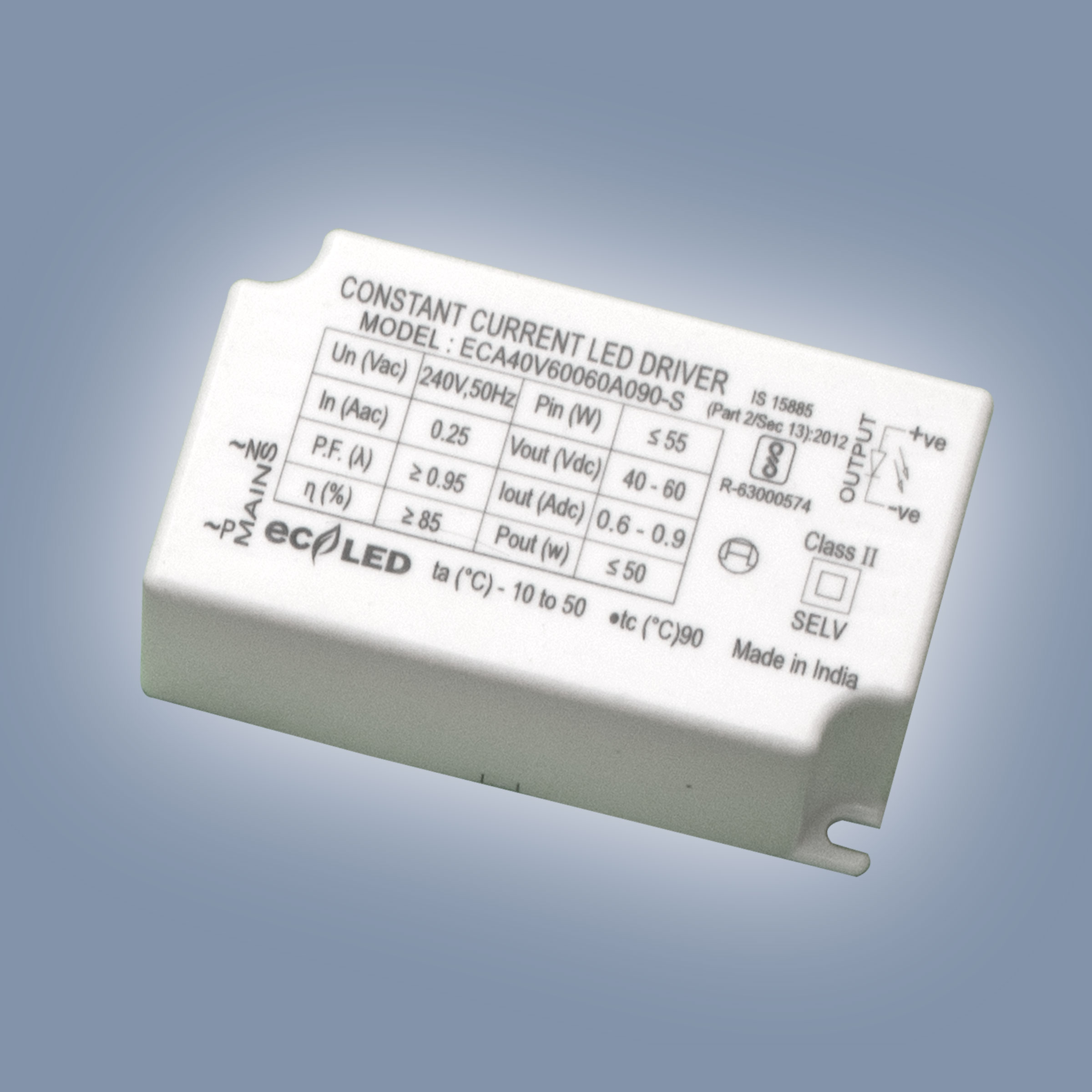

36W to 45W
Model No.:ECA40V60060A090-S
Output Rating: 42 – 55V, 750mA
FEATURES
Constant Current, Isolated
Class II Driver
Plastic Casing
Operating Voltage Range (140-285 Vac)
6KV Surge Differential Mode
Protections - OVP, SCP, OTP
IP 20 / IP 65
Dimension : L x W x H: 90x50x35mm
Indoor and Outdoor Applications
DATA SHEET
46W to 60W
Model No.: ECA27V40100A160-S
Output Rating: 27V - 36V, 1.4A
FEATURES
Constant Current, Isolated
Class I Driver
Metal Casing
Operating Voltage Range (140-285 Vac)
6KV Surge Differential Mode & Common Mode
Protections - OVP, SCP, OTP
IP 20 / IP 65
Dimension : L x W x H: 146mm x 50mm x37 mm
Indoor and Outdoor Applications
DATA SHEET

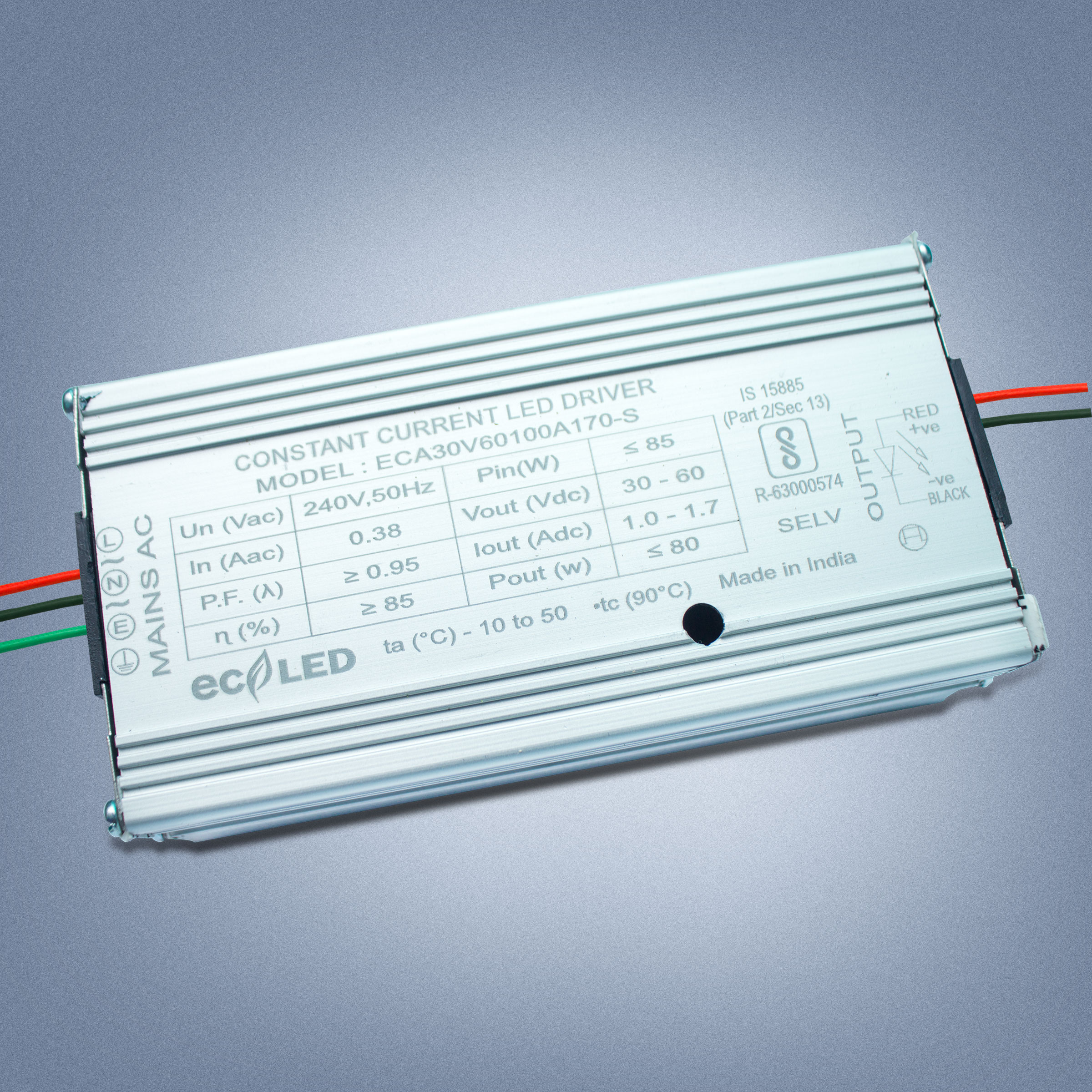

60 to 80 W
Model No.: ECA30V60100A170-S
Output Rating: 36V -48V, 1.4A
FEATURES
Constant Current, Isolated
Class I Driver
Metal Casing
Operating Voltage Range (140-285 Vac)
6KV Surge Differential Mode & Common Mode
Protections - OVP, SCP, OTP
IP 20 / IP 65
Dimension : L x W x H: 140mm x 65mm x 43mm
Indoor and Outdoor Applications
DATA SHEET
81W to 120W
Model No.: ECE36V54170A260-S
Output Rating: 36V -48V, 2.1A
FEATURES
Constant Current, Isolated
Class I Driver
Metal Casing
Operating Voltage Range (140-285 Vac)
6KV Surge Differential Mode & Common Mode
Protections - OVP, SCP, OTP
IP 20 / IP 65
Dimension : L x W x H: 161mm x 65mm x 43mm
Indoor and Outdoor Applications
DATA SHEET
120W to 150W
Model No.: ECA36V54220A280-S
Output Rating: 36V – 48V, 2.8A
FEATURES
Constant Current, Isolated
Class I Driver
Metal Casing
Operating Voltage Range (140-285 Vac)
6KV Surge Differential Mode & Common Mode
Protections - OVP, SCP, OTP
IP 20 / IP 65
Dimension : L x W x H: 190mm x65mm x43mm
Indoor and Outdoor Applications
DATA SHEET

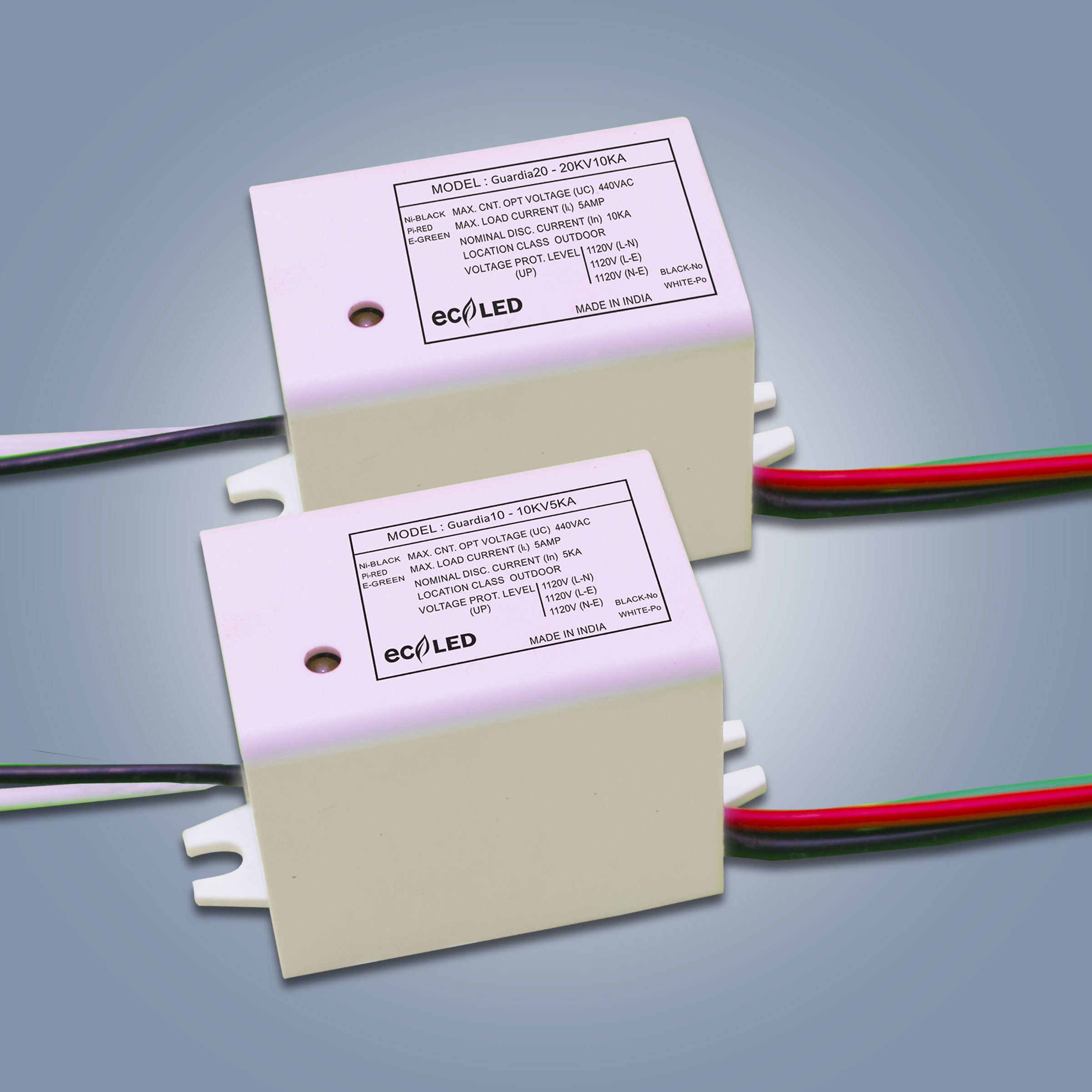

Surge Protection Device
Model No.: GUARDIA 10 & GUARDIA 20
FEATURES
Compact design
Line to Ground, Line to Neutral Protected
Thermally Protected
Silicon potting for IP66 protection
Provides High Surge Protection of 10KV / 20KV
Easy to Fix in new and existing installations
Suitable for insulation class I/II luminaries
Highly Reliable
LED indicator for working condition
DATA SHEET
